Security Robot Automated Patrol Vehicle Robot XAV Series

Security Robot Automated Patrol Vehicle Robot XAV Series

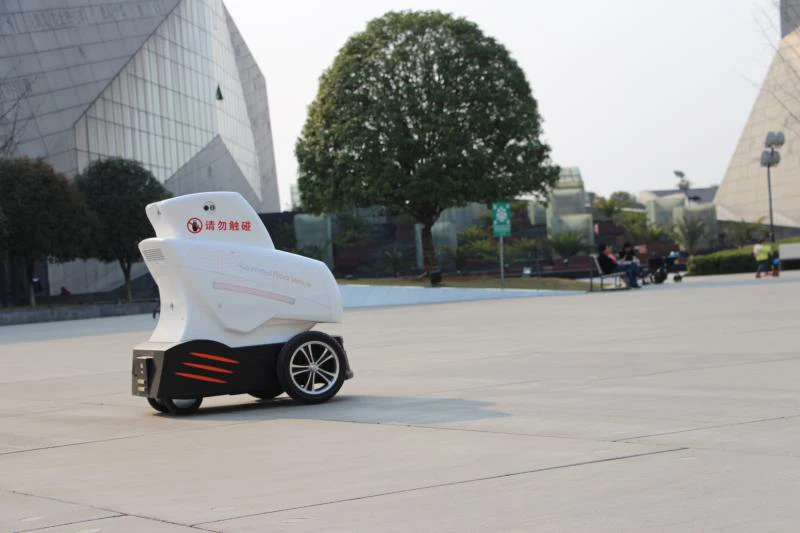

Security Robot Automated Patrol Vehicle Robot XAV Series can provide four core functions of autonomous patrolling, safety precaution, dispose of the matter and interactive service. It can be widely applied to large occasions such as community, private park, stadium, outer court, administrative complex, industrial park, prison outer apron, wharf and so on.

Security Robot Automated Patrol Vehicle Robot XAV Series

Product show

Security Robot Automated Patrol Vehicle Robot XAV Series.

Security Robot Automated Patrol Vehicle Robot XAV Series

Autonomous patrolling

Safety prevention

Dispose of the matter

Interaction services

Main Spec

Security Robot Automated Patrol Vehicle Robot XAV Series

 Dimension  1150*780*1180mm
 Patrol speed  5km/h
 Max speed  18km/h
 Battery Specification  48V / 20A
 Endurance time  8h
 Sensor  Laser radar,ultrasonic sensor,infrared  distance measuring sensors,collision  detection sensor
 Actuating unit  Acousto-optic alarm,Riot forks
 Rely on the network  WIFI,4G
 Walk mode  Automatic / remote
 Applicable working environment  Indoor / outdoor:All kinds of ground
 Charging pile  320*135*420mm(L*W*H)

Features

Autonomous patrolling:

Security Robot Automated Patrol Vehicle Robot XAV Series

Map-building: Using laser radar or visual SLAM technology to detect working area and set up environmental boundary map for robot autonomous running. 2D/3D laser radars are optional.

Autonomous positioning and navigation: In the course of patrol, the robot combines a code disk,IMU,laser radar and visual sensor to achieve real-time positioning. And carry out the task according to the established routes and time.

Automatic Obstacle Avoidance: The robot adopts the heuristic path search algorithm based on potential field map to select the most secure path. And to avoid obstacles based on various sensors, such as laser radar, vision, ultrasonic, infrared, collision and others.

Automatic charging: The robot automatically navigates to the position of the preset charge pile when the power of the robot is lower than a certain threshold to recharge after communicate and align with charging pile.

Safety prevention

Security Robot Automated Patrol Vehicle Robot XAV Series

Video surveillance:The robot is equipped with four high definition cameras to achieve the 360 degrees surrounding monitoring. Real-time and historical audio and video data can be viewed through the network by using a robot management platform.

Intelligent detection: The robot can detect pedestrians, dynamic targets, vehicles and other established targets from the real-time video, and upload the detection target to the robot management platform in real-time.

Environmental monitoring: The robot can carry sensors such as temperature, humidity, smoke and so on. Real-time monitoring environmental information and the real-time warning are reported to the robot management platform.

Dispose of the matter

Security Robot Automated Patrol Vehicle Robot XAV Series

Acousto-optic alarm: Robot is equipped with one button call help button. When the alarm is triggered, the robot sends out a police sound and light alarm and synchronizes report the robot platform manager.

Remote yelling: In case of emergency, managers can realize remote audio-visual interaction and interactive functions through robot management platform remote control robot, and improve the response efficiency after early warning.

Riot Deterrence: The robot equipped with an anti riot fork, an electric shock gun, or a strong light blinding device. The manager can manipulate robot remotely through robot management platform to open discharge deterrence, anti riot collision and other functions. It can effectively deter and curb crime.

Interaction services

Security Robot Automated Patrol Vehicle Robot XAV Series

Audio and video intercom: It can be initiated audio and video dialogue by robot to the robot management platform in a particular scene.

Media and information broadcast: It can play related safety publicity films, advertising, important word information, etc. during the patrol of robots by multi-media display function of robot configuration.

Application

It can be widely applied to large occasions such as community, private park, stadium, outer court, administrative complex, industrial park, prison outer apron, wharf and so on.
